Fuse Base Busbar Mounted
| Specification: | |
| Product Name: | Fuse Base Busbar Mounted 160 AMP |
|---|---|
| Rated Current: | 160 AMP |
| Rated Voltage: | 690 V |
| Type: | NH 00 |
| Mechanical data: | |
| W x H x D: | 35 x 102 x 86 |
|---|---|
| Weight: | 14.9 kg/100 |
| Poles: | 1-pole |
| Type of fastening: | Hook Clips |
|---|
| Terminal Points: | |
| Clamp-type terminals: | 1.5 - 70 mm² |
|---|---|
| Flexible cables with wire-end ferrule, | |
| Stranded round cables, | |
| lam. Cu max. 12 mm wide, max. 10 mm thick | |
|
Md 3 Nm
(Flexible cables of maximum cross-section may not fit when using wire-end ferrule) |
|
| Material properties: | |
| Main body: | Temperature stability 125°C |
|---|---|
| Standard features: | |
| 1 Pole (Single Pole), clamp connection, without protection cover & With Dividing Plate | |
| As per Standards IEC / EN 60269-1, IEC / EN 60269-2 |

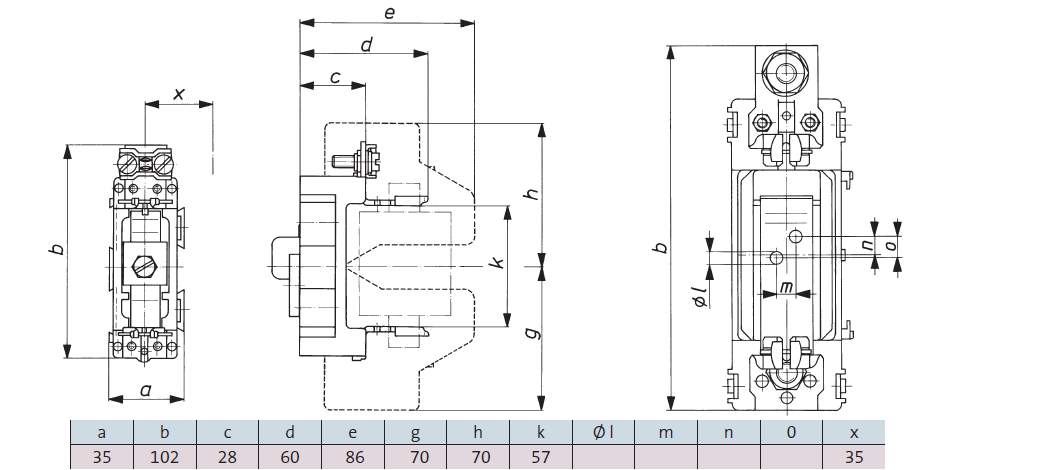

CONTROL FUSE GEAR (INDIA) IN DRAWING
